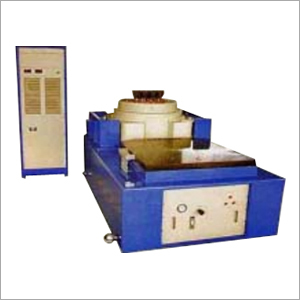

Electrodynamic Vibration Shaker

Electrodynamic Vibration Shaker
Electrodynamic Vibration Shaker
Product Code : 03
Product Description

We are strictly adhere to the guidelines laid by the international standards industry in order to provide high quality Electrodynamic Vibration Shaker that is extensively used in various industries and R&D laboratories for random and shock vibration analysis,sinusoidal in automotive parts, military hardware, electronics modules and many more. Our offered shaker is manufactured at our modern manufacturing unit under the supervision of our veteran professionals using premium grade components and latest tools and technology. This Electrodynamic Vibration Shaker can be owned at rock-bottom prices.

Features:

  • Wide Dynamic Range

  • Force rating from 10Kgf to 4000Kgf

  • High performance armature assembly

  • Power Efficiency is greater than 90%

  • 90 degree Rotation of the  shaker for easy integration with slip table

  • Power Module designed for easy and quick operation

  • Required Safety interlocks mounted  for safe operation

  • Auto Centering of Armature

  • Suitable Connectivity with all worldwide controllers

  • Option for Chamber integration.

Specifications:

Environment Equipments make Electrodynamic Vibration shaker system has a platform tightly connected with a Drive Coil (moving element) placed in magnetic field excited by pure AC signal produced by Digital Power Amplifier. When AC current flows in the drive coil, a force is generated which moves drive coil and attached platform vertically. This vibratory force directly applied on the test specimens mounted on Shaker platform. This force also can be used in the horizontal direction with the help of a slip table attachment. `Environment Equipments ' make Armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion. Reinforced SS inserts are provided on Armature platform to hold specimen/object to be tested.

Selection of a Suitable Vibration Shaker Force

The system rating is prepared as per direction of International Standards organization document ISO5344 (BS6140).Following information assist in selecting a suitable configuration system for intended applications.
The rating of the system is defined in terms of kgf force and is calculated by using the formula:
F = m*a
Where,    F = Machine Force in Kgf unit
m = Total moving mass in Kg (Armature weight + ILS load + Fixture load + object)
a = Acceleration in ‘g’
Note: Acceleration (g) due to natural Gravity = 9.8066 m/s²

VIBRATION SYSTEMS WITH CONFIGRATION AND RATING

Table-1

System Performance NCE

Model

E400/P46

E350/P42

E300/P36

E250/P30

E200/P20

E130/P12

E100/P9

Frequency range HZ

5-2800

5-2800

5-2800

5-2800

5-2800

5-2800

5-2800

Rated Force

Sine

(kgf)

4000

3500

300

2500

2000

1500

1000

(kn)

40.0

35.0

30.0

25.0

20.0

15.0

10.0

Random

(kgf)

4000

3500

3000

2500

2000

1500

1000

(kn)

40

35

30

25

20

15

10

Max. Acceleration(g)

80

80

80

80

80

80

80

Max. Velocity (m/s)

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Max. Disp. (mm, p-p)

50

50

50

50

50

50

50

Max. Loading weight (kg)

600

550

500

450

350

250

200

System Power

64

55

48

40

32

20

15

Vibrator

Model

EEV400

EEV350

EEV300

EE250

EEV200

EEV150

EEV100

Mass of Armature (kg)

45

44

35

32

25

20

14

Armature diameter (mm)

410

410

360

300

300

300

240

Power Amplifier

Model

EPA9K40

EPA8K40

EPA7K30

EPA6K23

EPA5K20

EPA4K20

EPA3K9

Max. Output KVA

48.0

42.0

36.0

30.0

20.0

20.0

10

Technology

PWM

PWM

PWM

PWM

PWM

PWM

PWM

Controller

Vibration controller








Cooling System

Model

ECS040

ECS035

ECS030

ECS025

ECS020

ECS015

ECS001

Type of cooling

Air cooled

Air cooled

Air cooled

Air cooled

Air cooled

Air cooled

Air cooled
